TVS Raider
A blend of modern tech and retro style, designed to never blend in.
Varient
Preview
TVS Raider details
What makes Raider stand apart?

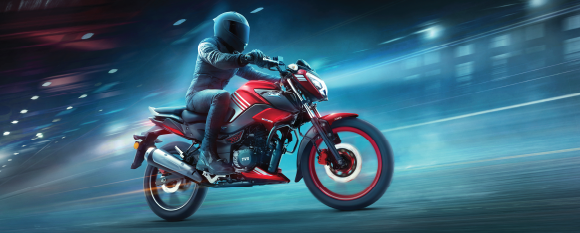

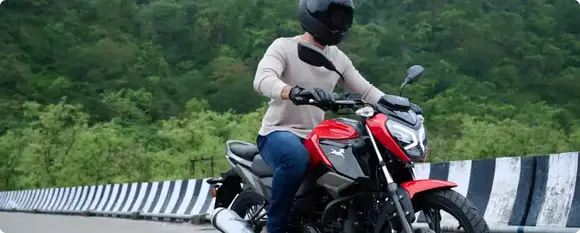

Styling
Features

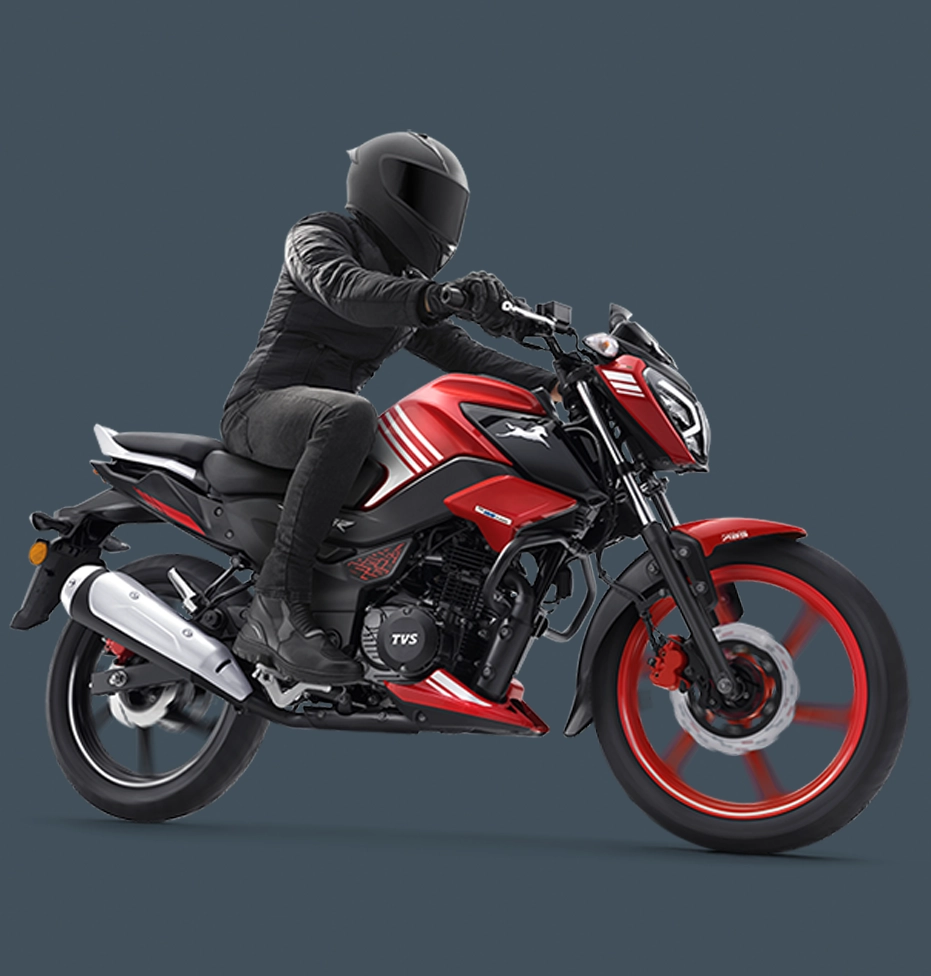

Comfortable ride stance
Enhance your wicked style with ease of riding.

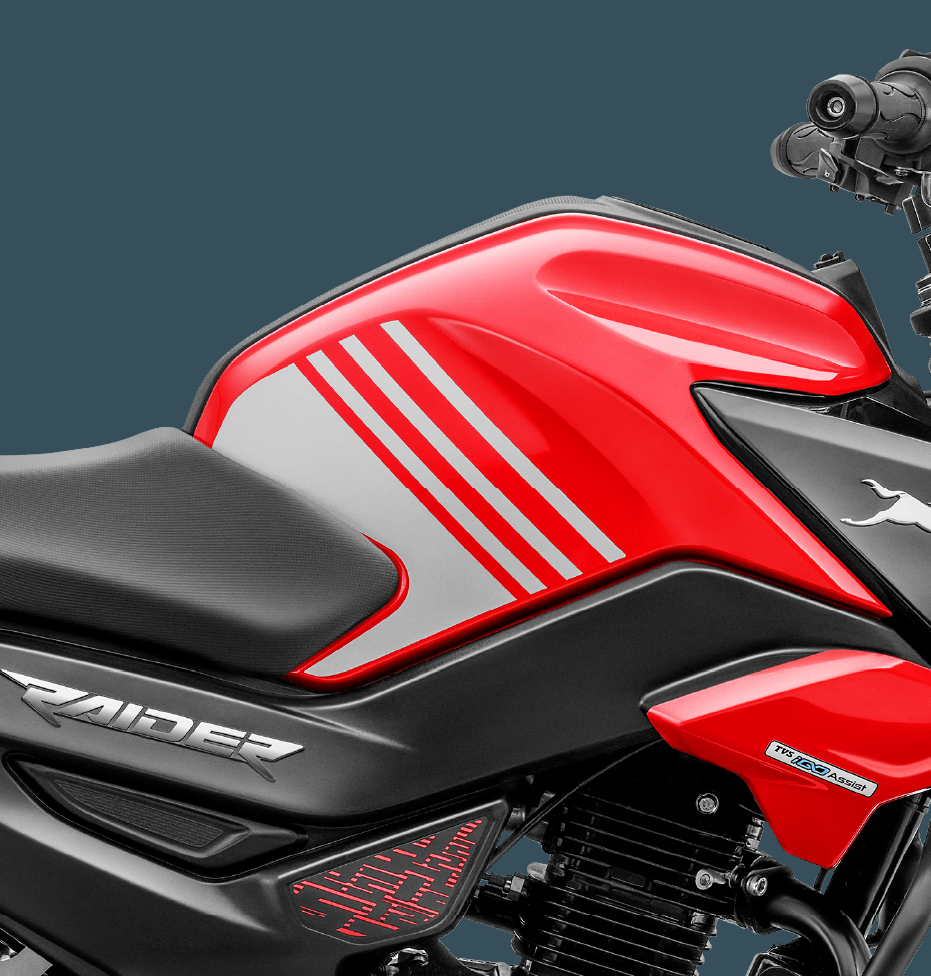

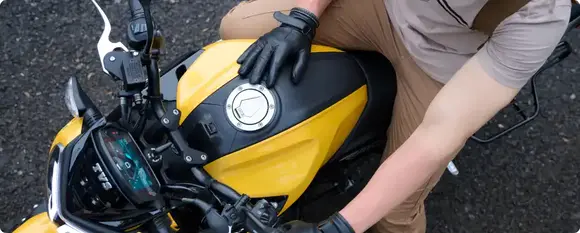

Sporty fuel tank
Sleek fuel tank with a sporty quotient.

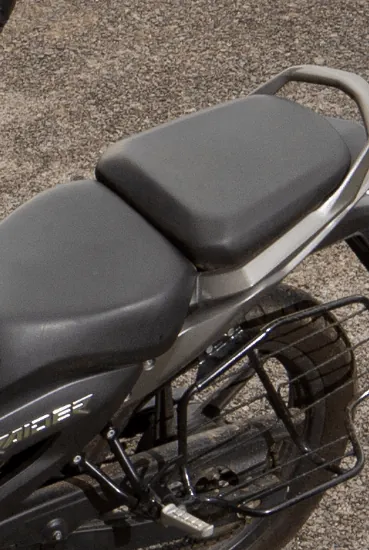

Split seat with premium rexin
Enjoy the all-new wicked split seat with comfort.

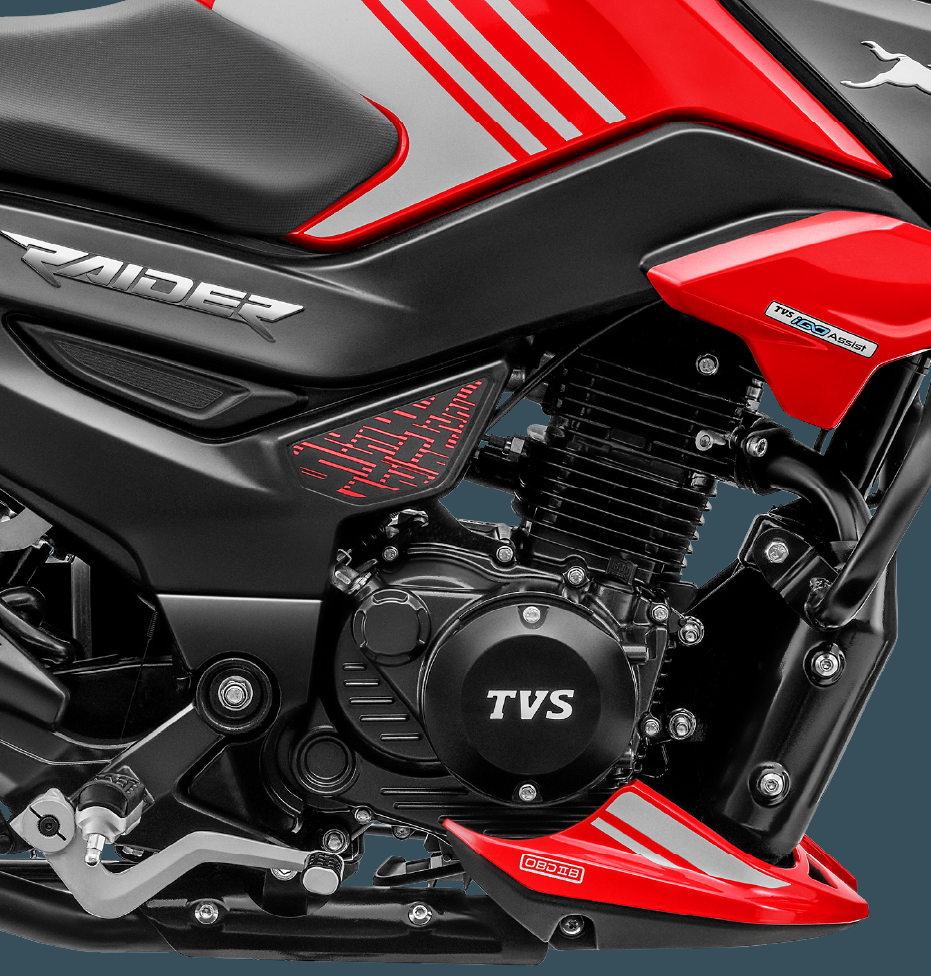

Body-colored engine guard
An addition to the wicked aesthetic.

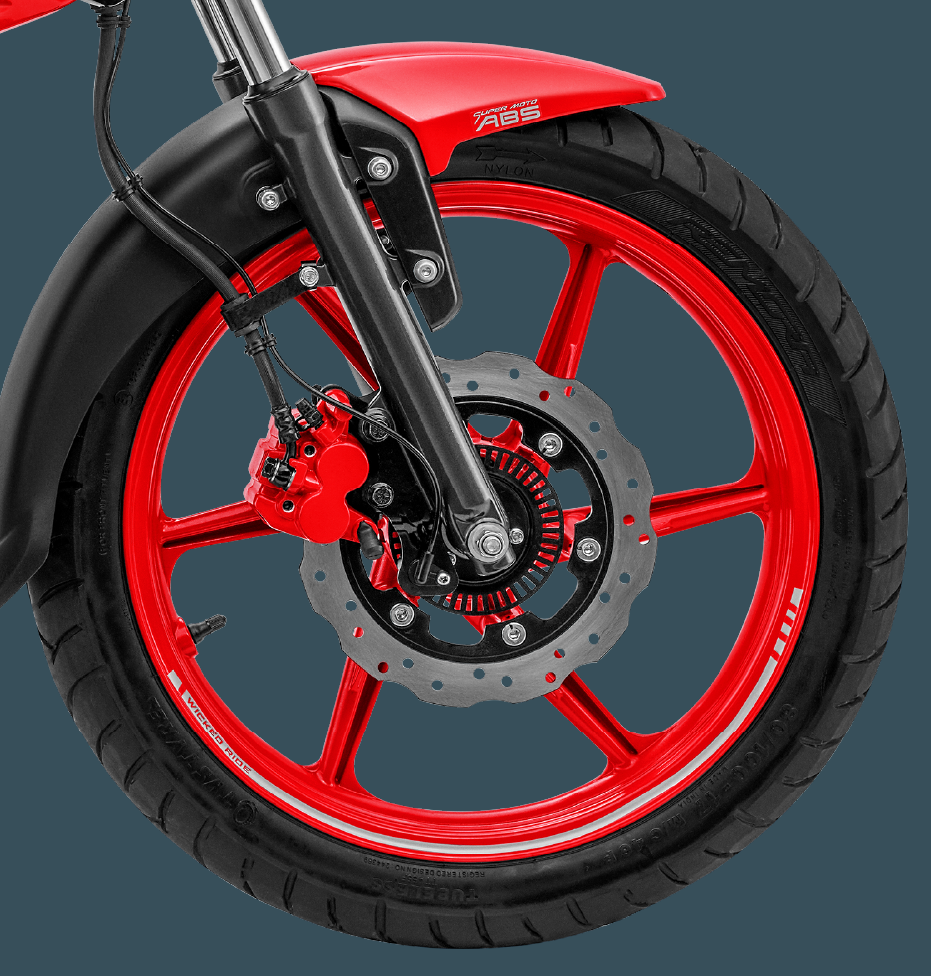

Rotopetal disc brake
For top-tier safety and style.

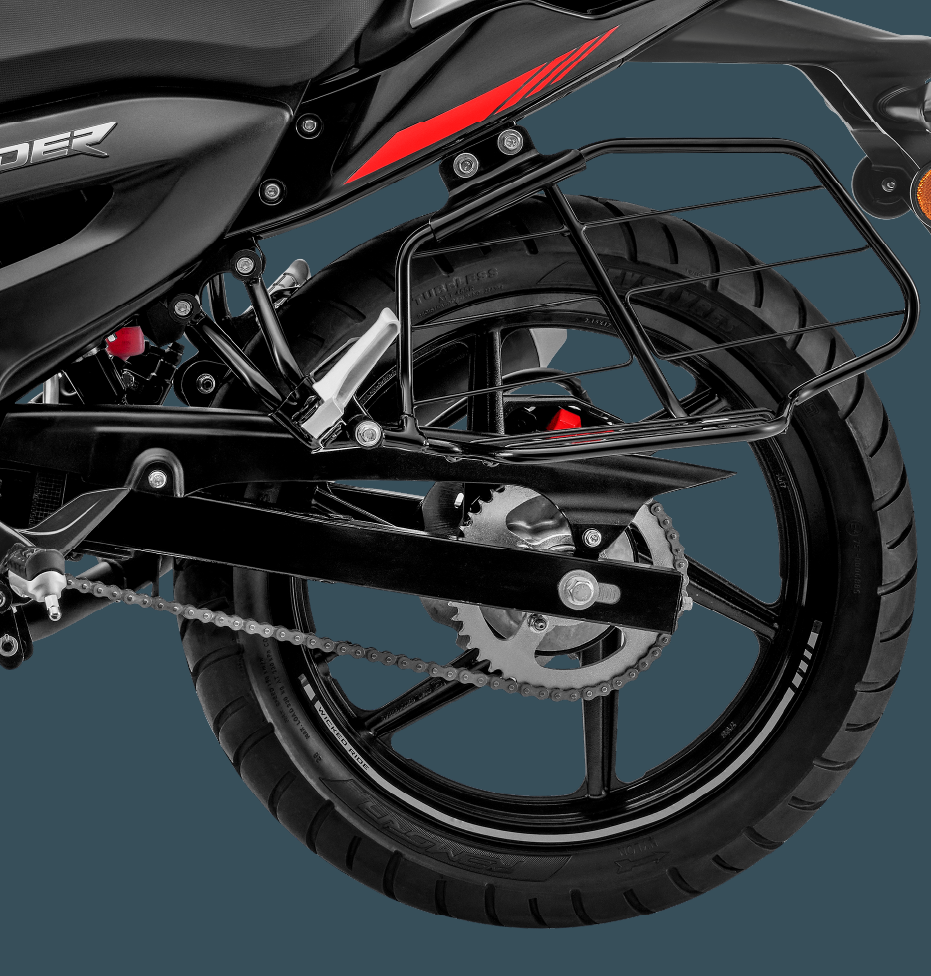

Sporty half chain case
Complement your perfect wicked ride.

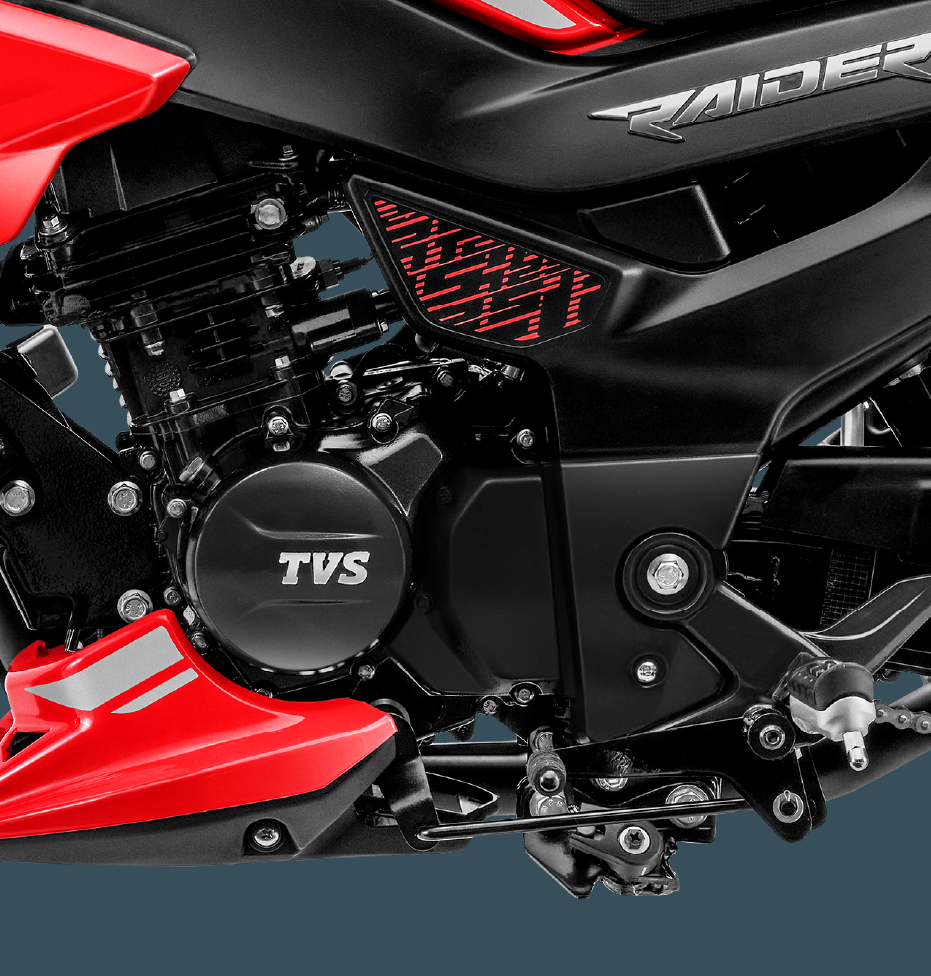

Sporty-toe gear shift
To get you in the right gear.
Wide handlebars, Al handlebar holder
A relaxed riding stance on your wicked ride.

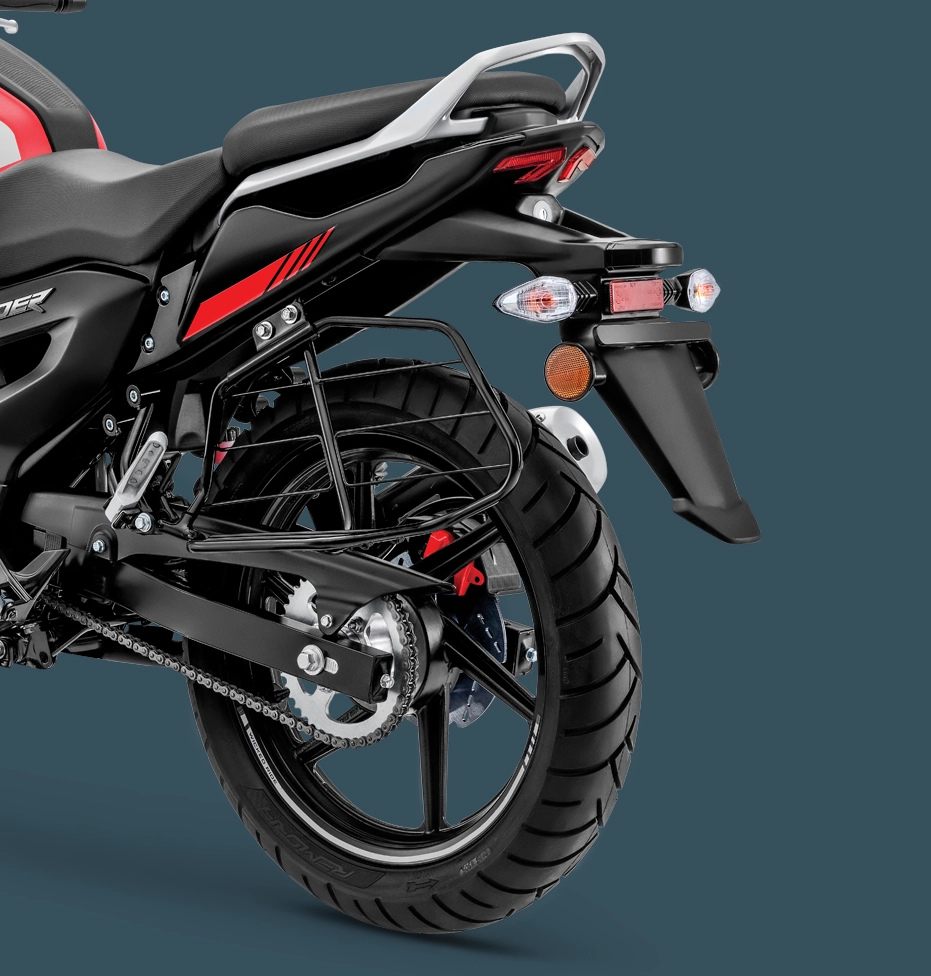

Aluminum Pillion Handle
For supreme safety and style.

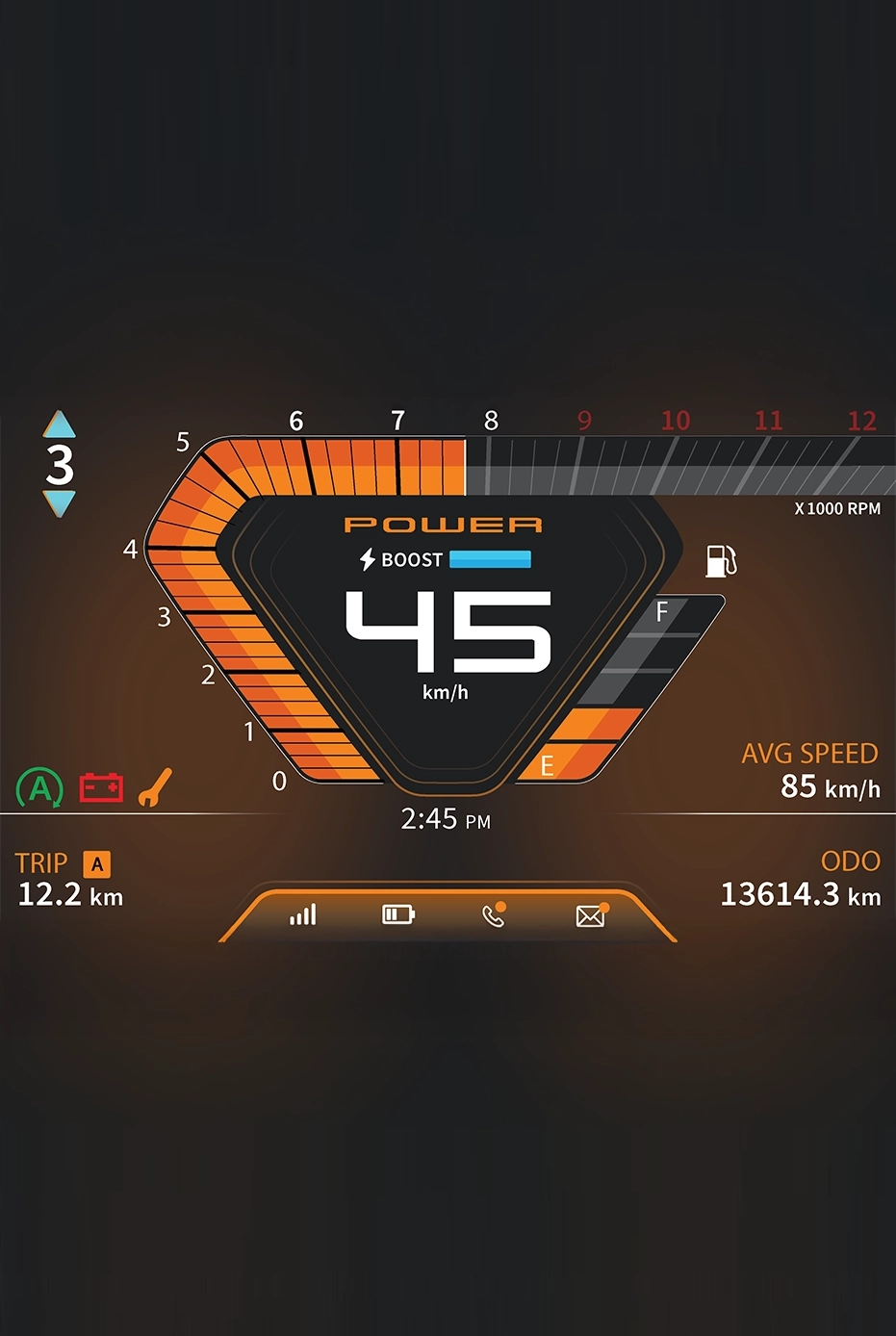

TFT Display
TFT Display with 99+ Connected Features.

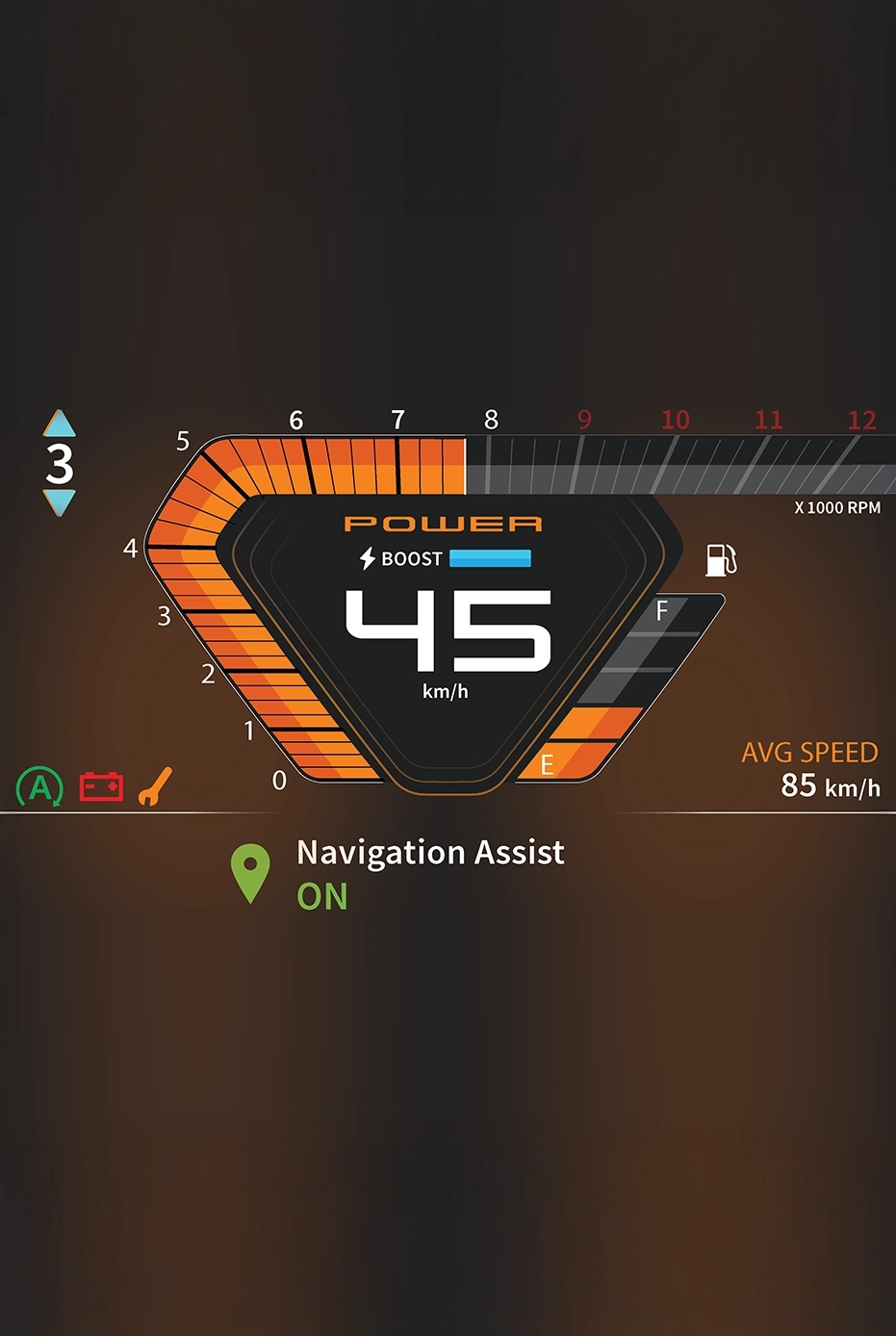

NAVIGATION
Turn-by-turn Navigation with on-screen and voice prompts along with Auto-Navigation assist to nearest fuel pump on low fuel

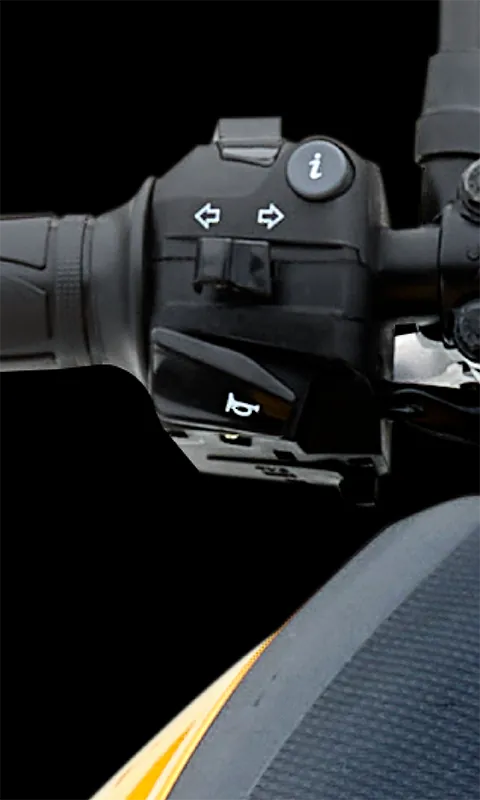

HMI
Wicked just got wickeder with Human Machine Interface buttons. Now activate navigation or access critical information, all with a single touch

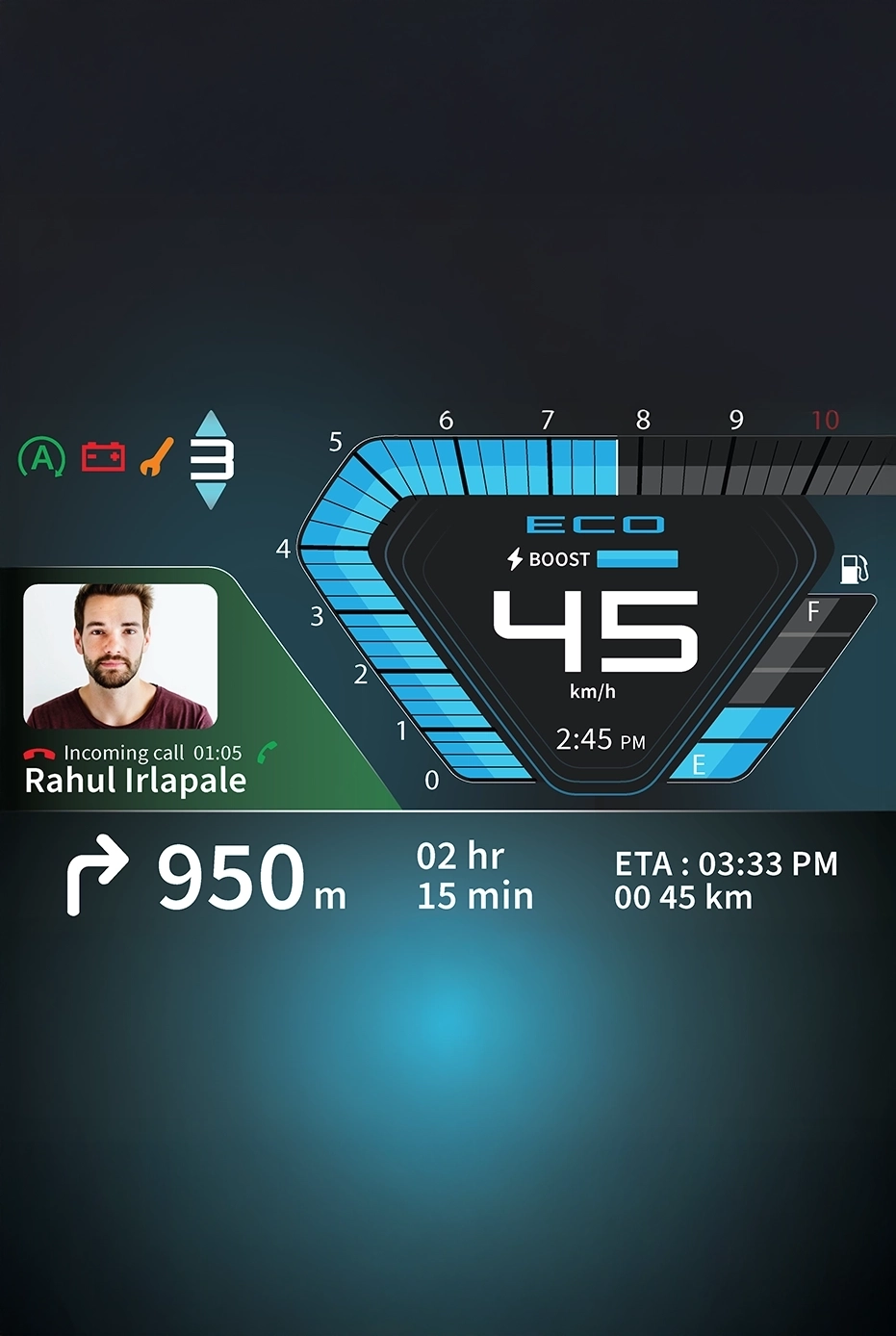

CALL MANAGEMENT
ON-THE-GO call management & single touch button operation .

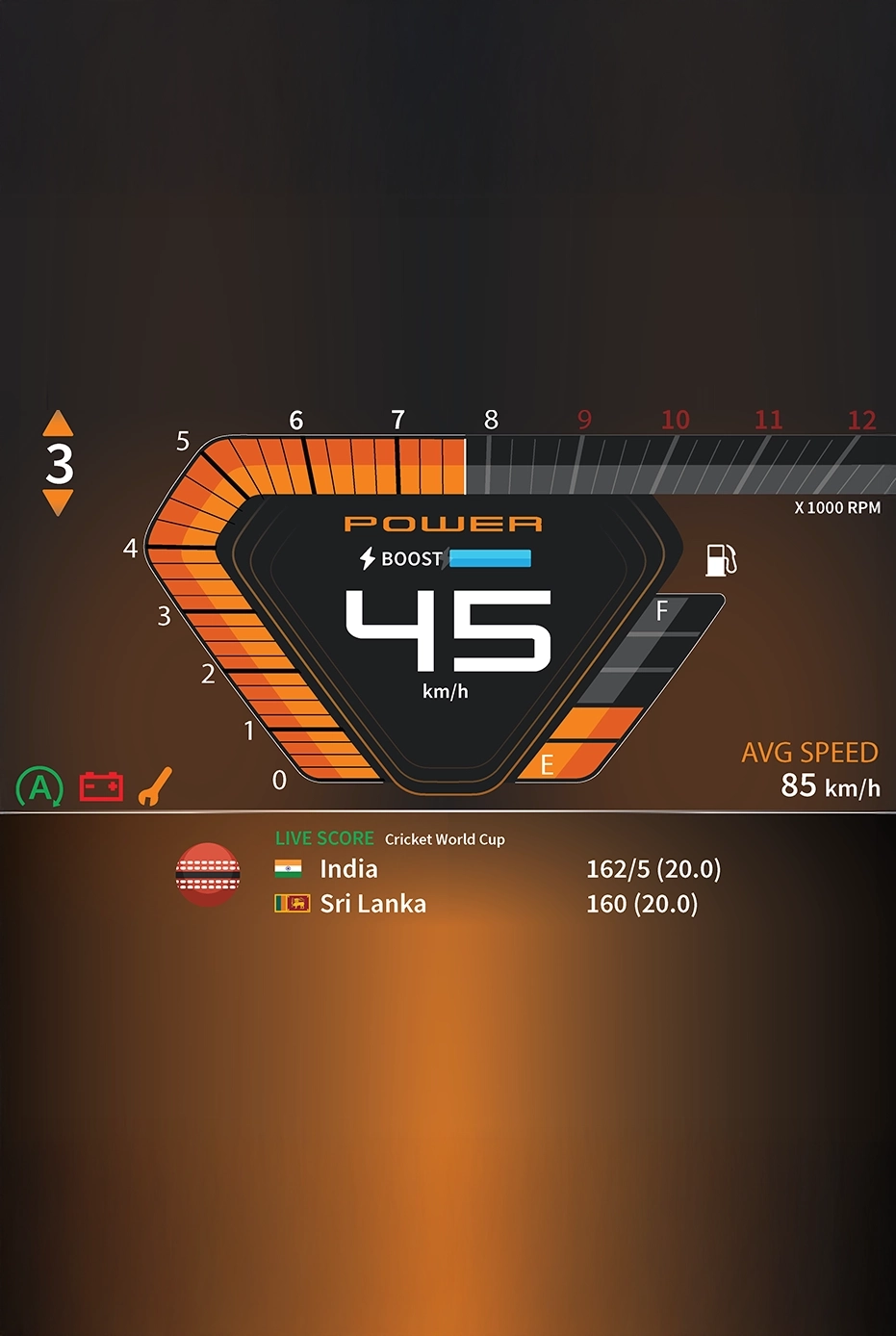

SCORE AND WEATHER FEATURES
Always be updated, even on the go. With TVS Raider’s auditory features like live match scores and weather updates, now miss nothing.

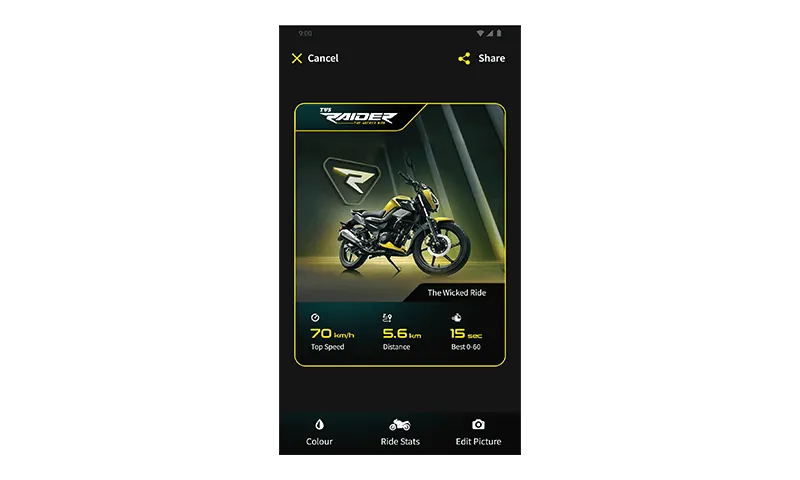

RIDE REPORTS
Get Socially Wicked. Share more than just words with ride reports sharing.

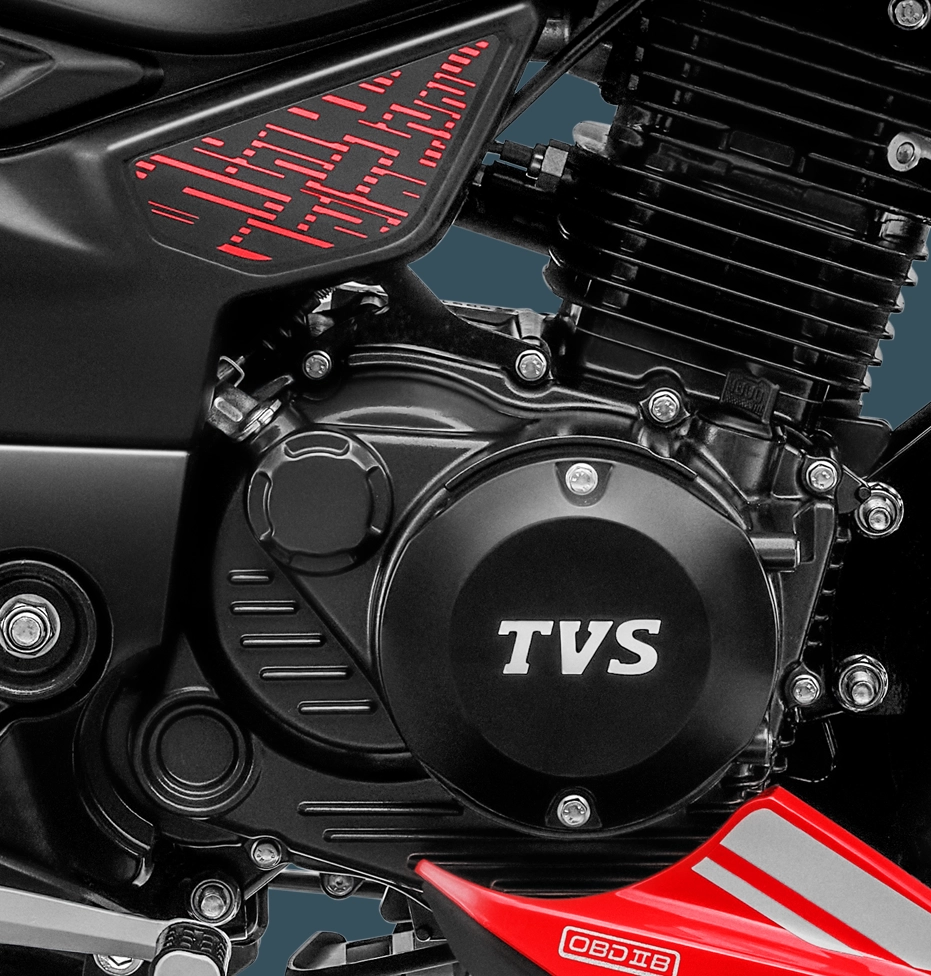

UNBEATABLE Mileage
INTELLIGENT stop-start technology.
GTT (Glide through Technology )
Effortless slow speed riding in traffic conditions.
Wider Split seat high-density seat foam
Go further comfortably, with Raider.

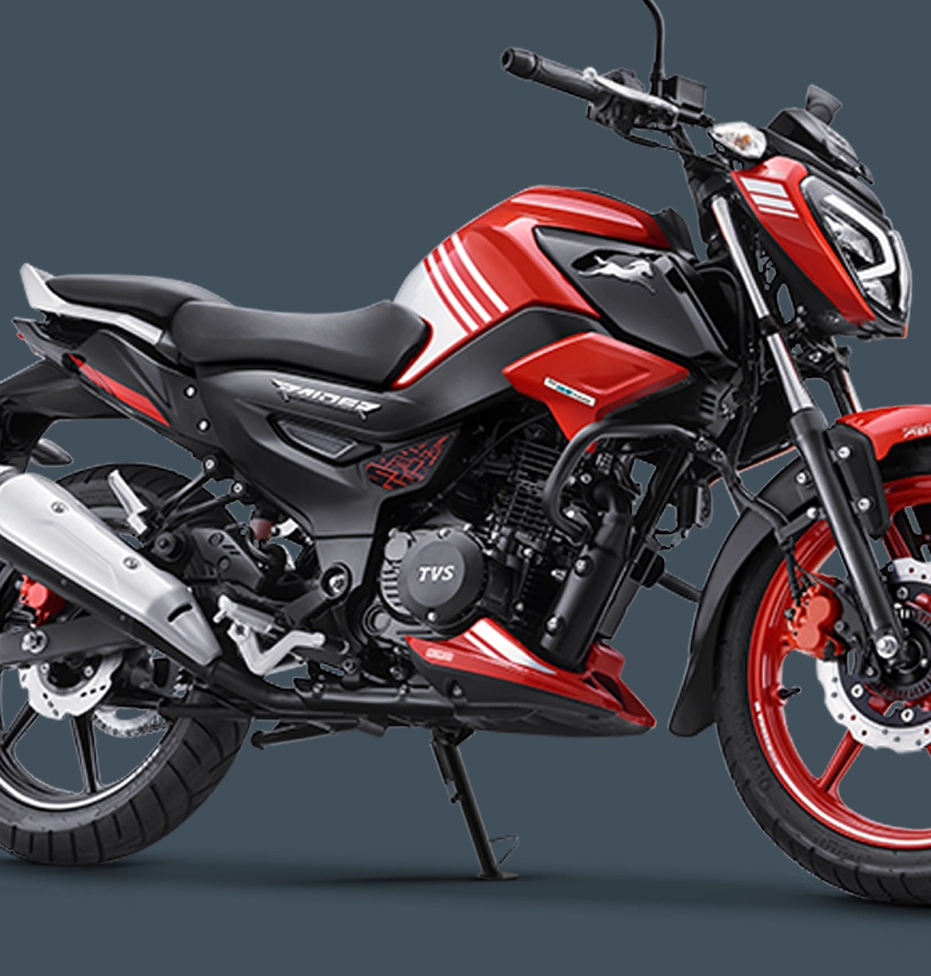

Easy ground reach
Lower seat height @ 780mm for easy and firm ground reach, so you are grounded as ever.

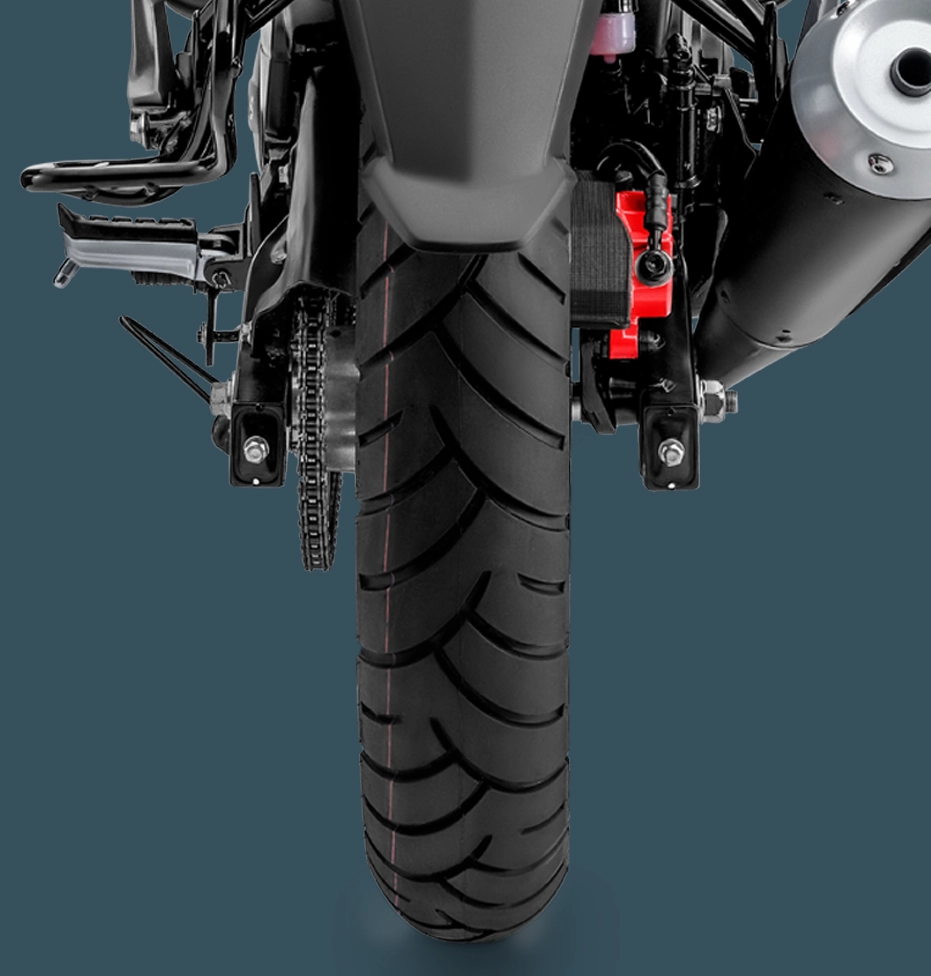

Wider Tyres
For better safety, no matter the terrain
Wider swing arm
Increased stability and maneuverability.

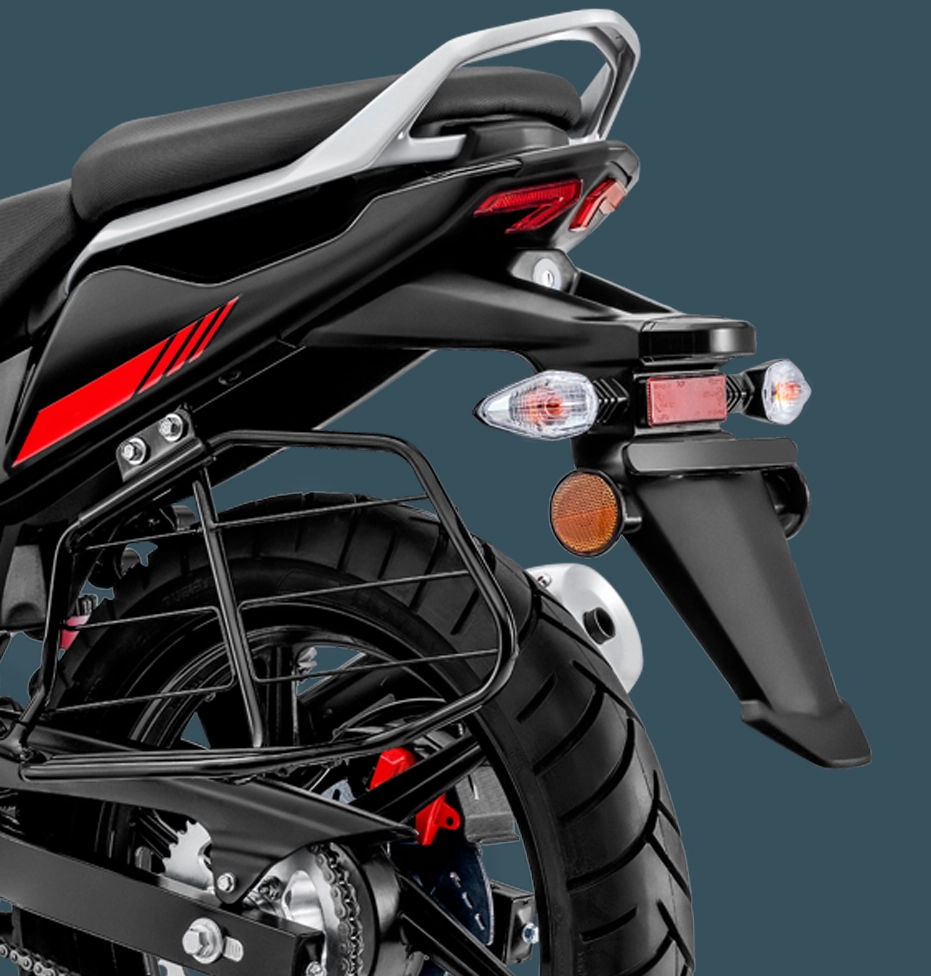

Pillion Handle
Safety and style intact.

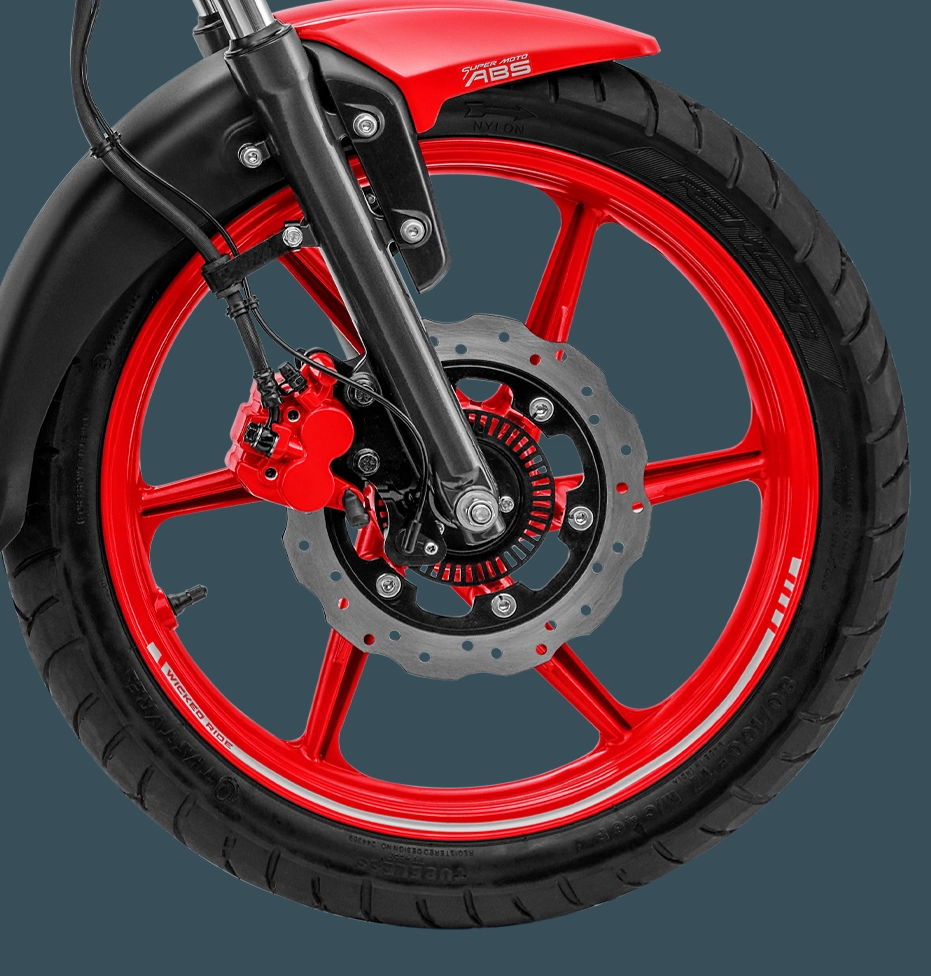

Roto Petal Dual Disc Brakes with ABS
First In segment- Dual disc with Single channel ABS – Safety at your finger tips with enhanced braking control in all scenarios.
Helmet attention indication
Helmet? Check!
Side stand indicator with engine cut-off
Your safety is never compromised with Raider.

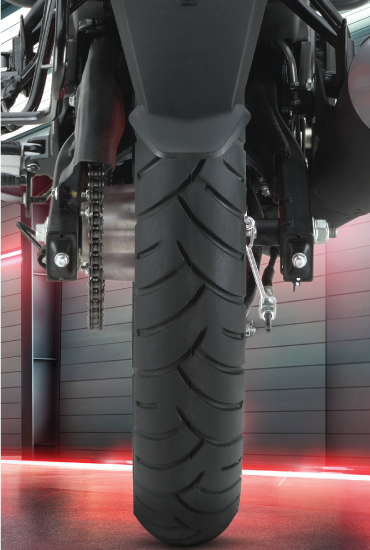

Tubeless tyres
Keep moving.

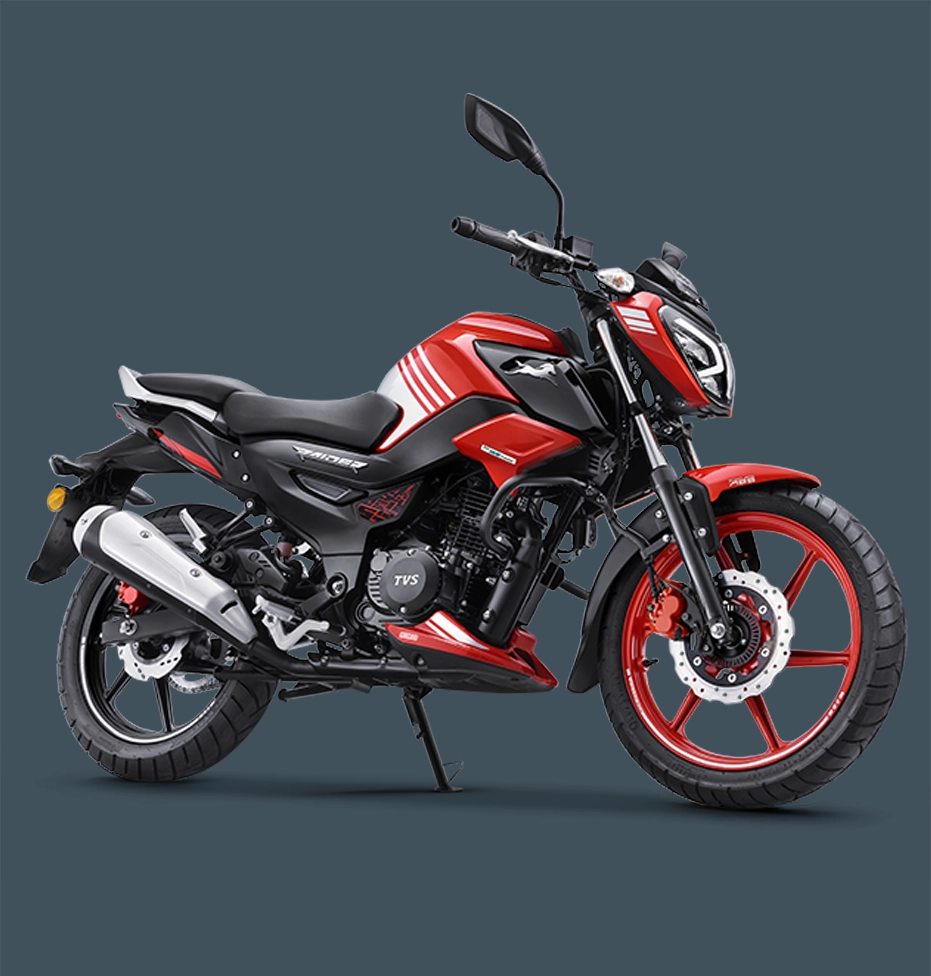

180 mm Ground Clearance
Now terrain will be the last thing on your mind.

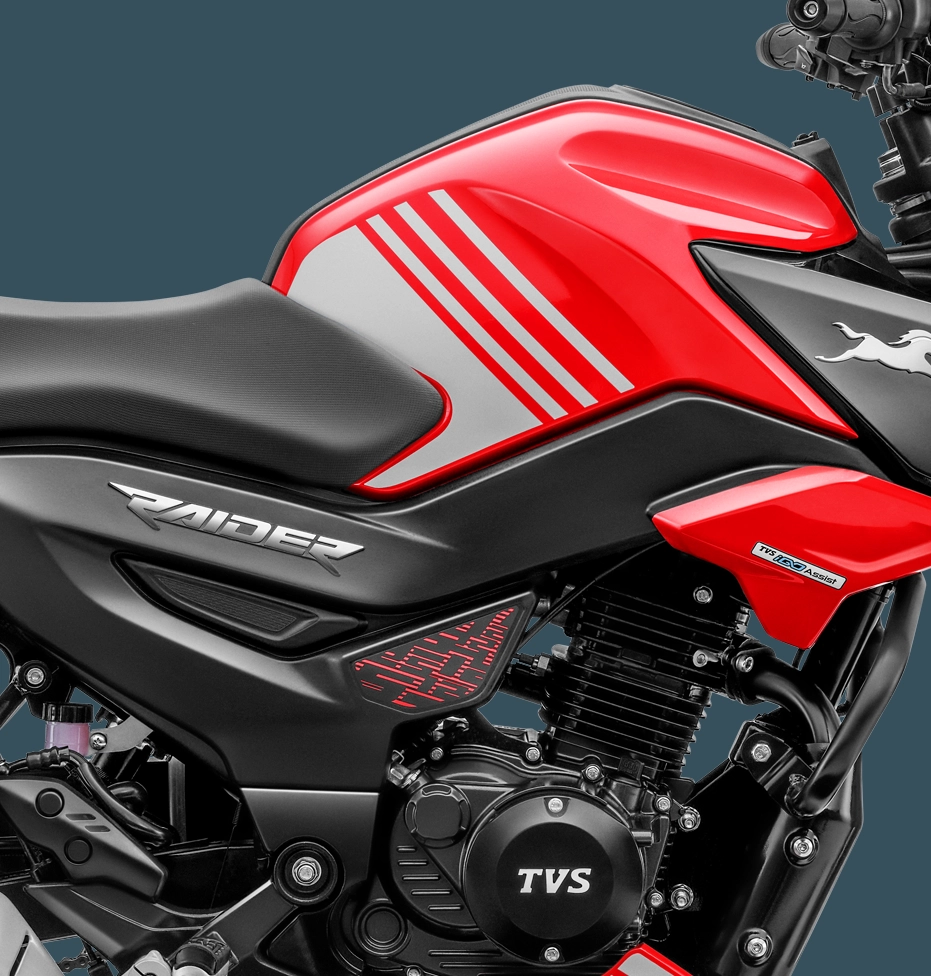

Engine guard
Added protection for chassis and engine.
Specifications
Engine
Capacity
124.8 cc
Type
Air & Oil cooled single cylinder, SI
Max Power
8.37kW @ 7500 rpm
Max Torque
11.2Nm @ 6000 rpm 11.75Nm @ 6000 rpm (iGO Assist)
Bore x Stroke
53.5 x 55.5 mm
Cooling system
Oil cooled
Fuel Tank Capacity
12 L
Engine oil grade
TVS TRU4, 4T oil (10W30)
Engine oil quantity, ml
1000
Electrical
Headlamp
LED
Tail lamp
LED
Battery
MF battery, 12V 5 Ah (iGO Assist)
Dimensions
Height
1028 mm
Length
2070 mm
Width
785 mm
Wheelbase
1326 mm
Ground Clearance
180 mm
Saddle Height
795 mm
Kerb Weight
Kerb weght - 123 KG (SSE , iGO, Split) 124 KG (Single Seat , Drum )125 KG (TFT DD , SXC DD)
Fuel Tank Capacity
14 L
Chassis and Suspension
Front Suspension
Telescopic
Rear Suspension
Monoshock, 5 step adj, Gas charged
Type, Wheel & Brakes
Tyre Size & Type (Front)
90/90-17 Tubeless, 49 P (TFT DD and SXC DD) 80/100- 17 Tubeless , 46 P
Tyre Size & Type (Rear)
110/80-17 Tubeless ,57 P (TFT DD and SXC DD) 100/90-17 Tubeless, 55P
Brake Type & Size (Front)
Disc -240 with ABS (TFT DD and SXC DD) Disc -240 (SSE, iGO ,Split Seat and Disc) Drum-130
Brake Type & Size (Rear)
Disc- 200 (TFT DD and SXC DD) Drum-130 Synchro SBT
